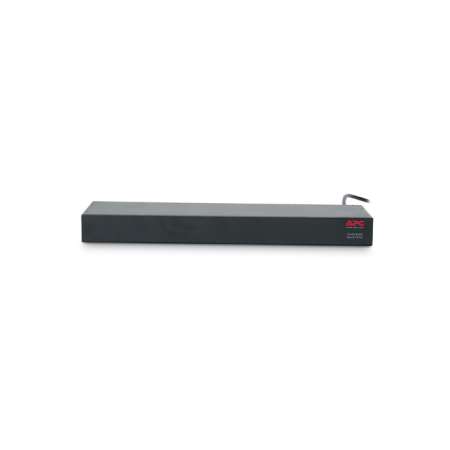

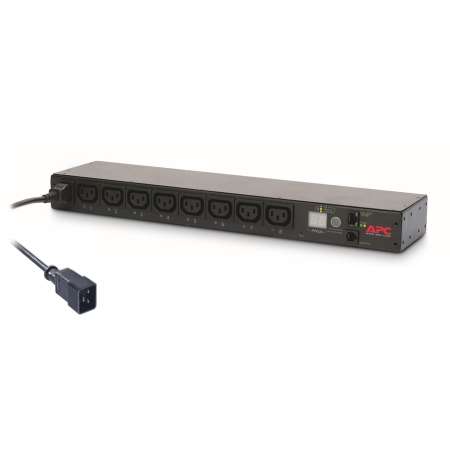

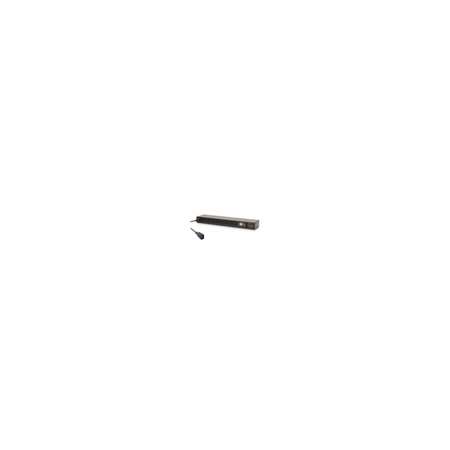

APC AP7921B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black

£851.84 £709.87
In stock
SKU
AP7921B
In Stock (4 available)

Key Features

  • Metered
  • Switched
  • 0U/1U
  • Horizontal/Vertical
  • Black
  • 8 AC outlet(s)
This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

APC AP7921B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black

Brand: APC

Design

PDU typesMetered, Switched
Rack capacity0U/1U
MountingHorizontal/Vertical
Product colourBlack

Ports & interfaces

AC outlets quantity8 AC outlet(s)
Power plugC20 coupler
AC outlet typesC13 coupler
Input connection typeIEC-320 C20

Features

Cable length2.5 m

Management features

MonitoringCurrent, Power, Voltage
Outlet controlLock-out, Recycle, Turn off, Turn on

Power

Nominal input voltage200-230 V
AC input frequency50 - 60 Hz
Maximum current16 A
Nominal output voltage208-230 V
Load capacity3680 VA
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Maximum power3680 W

Certificates

Compliance certificatesRoHS
CertificationcUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude1 - 15000 m

Weight & dimensions

Width445 mm
Depth108 mm
Height44 mm
Weight2.27 kg

Packaging content

Packaging contentInstallation Guide, Rack Mounting Brackets, User Manual

Packaging data

Package weight3.45 kg
Package width470 mm
Package depth343 mm
Package height70 mm

Logistics data

Total carbon footprint (kg of CO2e)915.89
