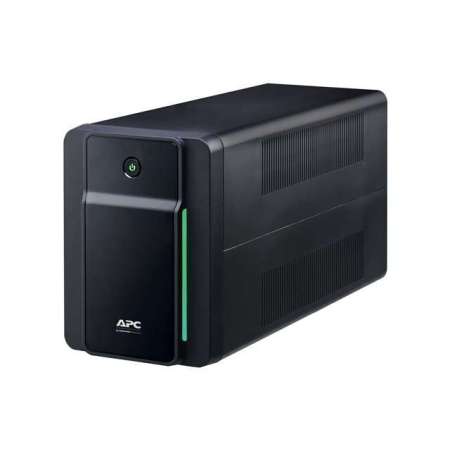

APC Back-UPS 1600VA, 230V, AVR, IEC Sockets
Features UPS topology Line-Interactive Output power capacity 1.6 kVA Output power 900 W Waveform Sine Input operation voltage (min) 140 V Input operation voltage (max) 300 V Input frequency 50/60 Hz Output operation voltage (min) 230 V Output operation voltage (max) 230 V Output frequency 50/60 Hz Output frequency regulation 0.5 Hz Output voltage regulation 10% Automatic Voltage Regulation (AVR) Yes Surge energy rating 273 J Response time 6 ms Input power factor 0.56 Noise level 40 dB Audible alarm(s) Yes Audible alarm modes Low battery alarm
Ports & interfaces AC outlet types C13 coupler Power plug C13 coupler AC outlets quantity 6 AC outlet(s) USB port Yes USB 2.0 ports quantity 1 USB port type USB Type-B Ethernet LAN (RJ-45) ports 2
Battery Battery technology Sealed Lead Acid (VRLA) Battery capacity 7 Ah Battery voltage 24 V Typical backup time at full load 1 min Typical backup time at half load 6.5 min Battery life (max) 2 year(s) Battery recharge time 8 h
Design Form factor Compact Cable length 1.2 m Built-in fan Yes Product colour Black LED indicators Yes International Protection (IP) code IP20
Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -15 - 40 °C Operating relative humidity (H-H) 0 - 95% Operating altitude 0 - 3000 m
Certificates Compliance certificates RoHS Certification CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Packaging content Cables included Input power cable Manual Yes
Weight & dimensions Width 140 mm Depth 390 mm Height 190 mm Weight 10.3 kg
Packaging data Package width 390 mm Package depth 140 mm Package height 190 mm Package weight 11.3 kg
Logistics data Harmonized System (HS) code 85078000
