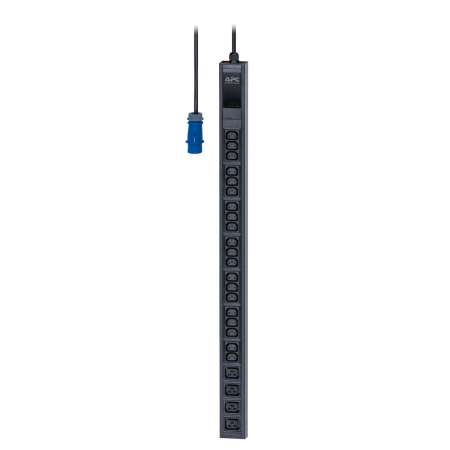

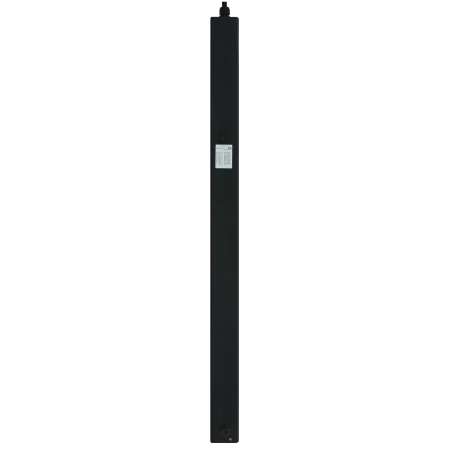

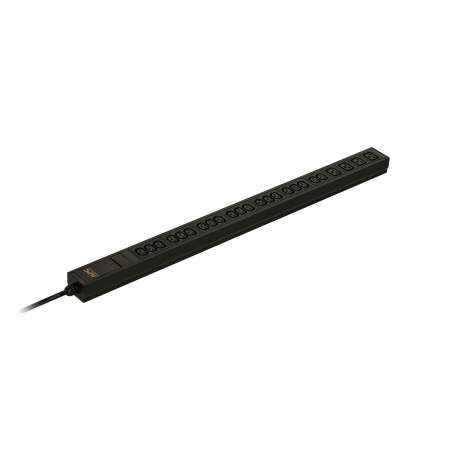

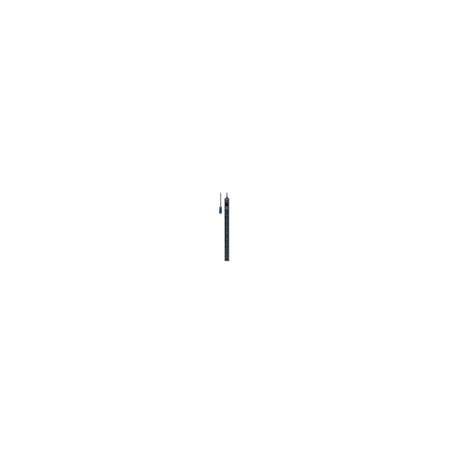

APC Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet

£260.36 £216.97
Out of stock
SKU
EPDU1116B
Out of Stock

Key Features

  • Basic
  • 0U
  • 1 Phase
  • 3.7kW
  • 230V
  • 16A
APC Easy Basic Rack PDU EPDU1116B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1116B has IEC 309 16A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.

APC Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet

Brand: APC

Design

PDU typesBasic
TypeSingle-phase
Rack capacity0U
MountingVertical
Housing materialAluminium
Product colourBlack
On/off switchNo

Ports & interfaces

AC outlets quantity24 AC outlet(s)
Power plugIEC 60309
AC outlet typesC13 coupler, C19 coupler

Features

Cable length3 m

Power

Nominal input voltage200/208/230 V
AC input frequency50 - 60 Hz
Maximum current16 A
Nominal output voltage230 V
Load capacity3680 VA
Maximum input current per phase16 A
Maximum power3680 W

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 9000 m

Weight & dimensions

Width62 mm
Depth44 mm
Height902 mm
Weight2.2 kg

Packaging content

ManualYes

Packaging data

Package weight2.98 kg
Package width160 mm
Package depth110 mm
Package height1320 mm

Logistics data

Total carbon footprint (kg of CO2e)55.85
