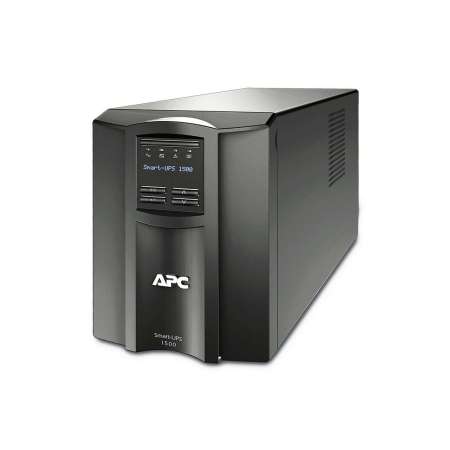

APC Smart-UPS, Line Interactive, 1500VA, Tower, 230V, 8x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD
Key Features
AC 220/230/240 V
1000 Watt
1500 VA
RS-232
USB
output connectors: 8
Features UPS topology Line-Interactive Output power capacity 1.5 kVA Output power 1000 W Waveform Sine Input operation voltage (min) 151 V Input operation voltage (max) 302 V Input frequency 50/60 Hz Output operation voltage (min) 220 V Output operation voltage (max) 240 V Output frequency 50/60 Hz Automatic Voltage Regulation (AVR) Yes Surge energy rating 459 J Output voltage Total Harmonic Distortion (THD) 5% Noise level 45 dB Surge protection Yes Audible alarm(s) Yes Web-based management Yes Audible alarm modes Alarm when on battery, Low battery alarm, Overload alarm Auto-restart Yes Temperature voltage compensation Yes
Ports & interfaces AC outlet types C13 coupler, IEC Jumpers Power plug C14 coupler AC outlets quantity 8 AC outlet(s) USB port Yes USB 2.0 ports quantity 1 Serial interface Yes Serial interface type RS-232 Serial ports quantity 1 Ethernet LAN (RJ-45) ports 1 SmartSlot Yes
Battery Battery technology Sealed Lead Acid (VRLA) Battery life (max) 5 year(s) Battery recharge time 3 h Hot-swap battery Yes Automatic battery test Yes Cold start Yes
Design Form factor Mini Tower Cable length 1.83 m Product colour Black Display type LCD LED indicators Yes
Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -15 - 45 °C Operating relative humidity (H-H) 0 - 95% Storage relative humidity (H-H) 0 - 95% Operating altitude 0 - 3000 m Non-operating altitude 0 - 15000 m
Certificates Compliance certificates RoHS Certification CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE
Packaging content Cables included RS-232, USB cable Quick installation guide Yes
Sustainability Sustainability certificates Green Premium
Weight & dimensions Width 171 mm Depth 439 mm Height 219 mm Weight 24.1 kg
Packaging data Resource CD Yes Software CD Yes Package width 328 mm Package depth 595 mm Package height 376 mm Package weight 27.2 kg
Logistics data Products per pallet 12 pc(s) Harmonized System (HS) code 85078000 Total carbon footprint (kg of CO2e) 1270.81
