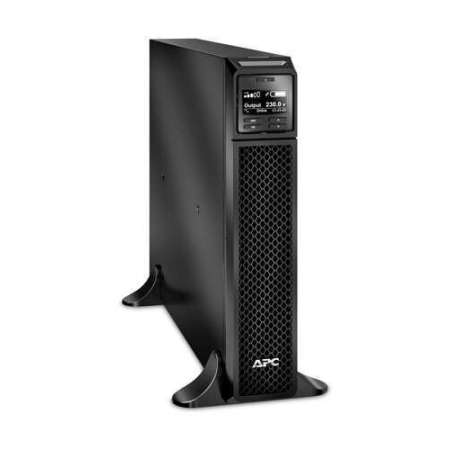

APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

£1,939.81 £1,616.51
In Stock (10 available)
SKU
SRT2200XLI

Key Features

  • 2200VA
  • Tower
  • 230V
  • 8x C13+2x C19 IEC outlets
  • SmartSlot
  • Extended runtime
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

Brand: APC

Features

UPS topologyDouble-conversion (Online)
Output power capacity2.2 kVA
Output power1980 W
WaveformSine
Input operation voltage (min)100 V
Input operation voltage (max)275 V
Input frequency40/70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Surge energy rating340 J
Efficiency92.2%
Crest factor3:1
Emergency Power Off (EPO)Yes
Noise level55 dB
Surge protectionYes
Audible alarm(s)Yes
Web-based managementYes
Auto-restartYes

Ports & interfaces

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
AC outlets quantity10 AC outlet(s)
Number of output IEC jumpers2
USB portYes
Serial interfaceYes
Serial interface typeRJ-45
SmartSlotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity367 VAh
Number of batteries supported1

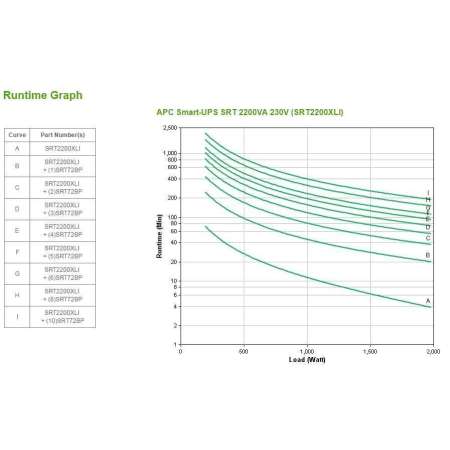

Typical backup time at full load3.9 min
Typical backup time at half load11.6 min
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes

Design

Form factorRackmount/Tower
Cable length2.44 m
Product colourBlack
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Certificates

Compliance certificatesRoHS
CertificationCE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH

Packaging content

Cables includedUSB cable
Quick installation guideYes

Sustainability

Sustainability certificatesENERGY STAR, Green Premium

Weight & dimensions

Width85 mm
Depth584 mm
Height432 mm
Weight25 kg

Packaging data

BracketYes
Warranty cardYes
Software CDYes
Package width599 mm
Package depth810 mm
Package height246 mm
Package weight30.8 kg

Logistics data

Products per pallet12 pc(s)
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)3634.43

Other features

InterfaceSmartSlot
Nominal output voltage230 V
Nominal input voltage230 V
Packaging contentPower cord Removable support feet
