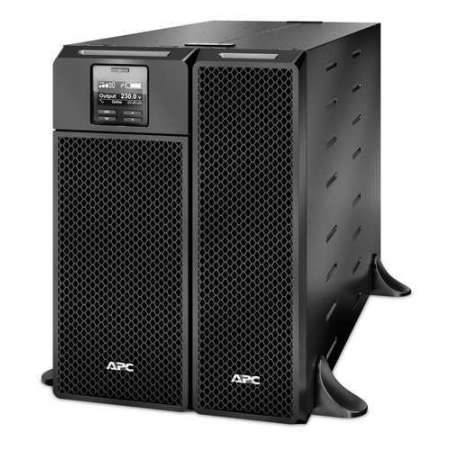

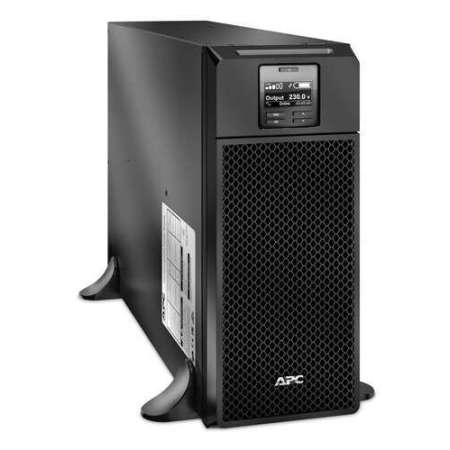

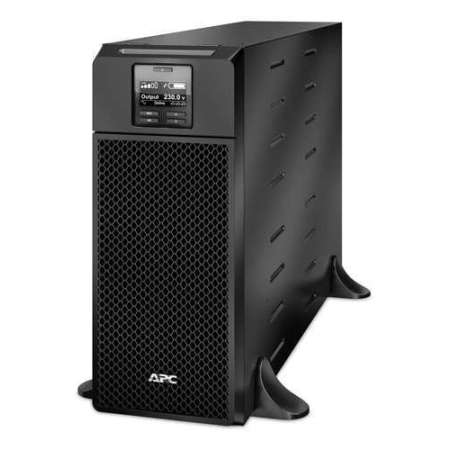

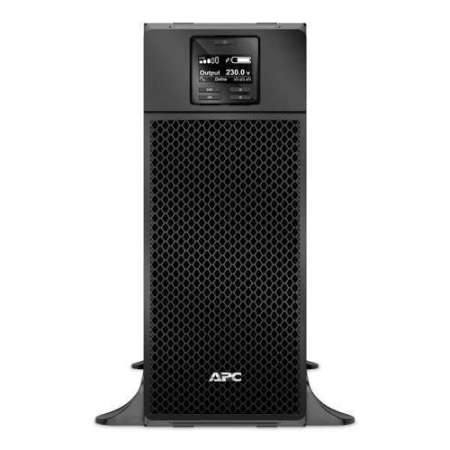

APC Smart-UPS On-Line, 6kVA/6kW, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

£5,491.84 £4,576.53
In Stock (5 available)
SKU
SRT6KXLI

Key Features

  • 6kVA/6kW
  • Tower
  • 230V
  • 6x C13+4x C19 IEC outlets
  • Network Card+SmartSlot
  • Extended runtime
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

APC Smart-UPS On-Line, 6kVA/6kW, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

Brand: APC

Features

UPS topologyDouble-conversion (Online)
Output power capacity6 kVA
Output power6000 W
WaveformSine
Input operation voltage (min)100 V
Input operation voltage (max)275 V
Input frequency40 - 70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency regulation50/60 Hz
Surge energy rating480 J
Number of output phases1
Efficiency94.4%
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
Noise level55 dB
Surge protectionYes
Audible alarm(s)Yes
Auto-restartYes

Ports & interfaces

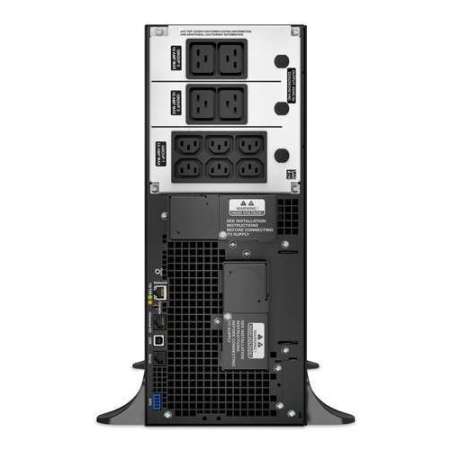

AC outlet typesC13 coupler, C19 coupler
Power plugHardwire
AC outlets quantity10 AC outlet(s)
Number of output IEC jumpers2
USB portYes
Serial interfaceYes
Serial interface typeRJ-45
SmartSlotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity902 VAh

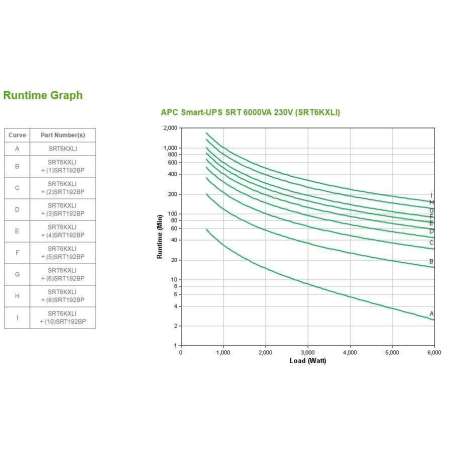

Typical backup time at full load2.5 min
Typical backup time at half load8.7 min
Battery life (max)5 year(s)
Battery recharge time1.5 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes

Design

Form factorRackmount/Tower
Product colourBlack
Display typeLCD
LED indicatorsStatus
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Certificates

Compliance certificatesRoHS
CertificationREACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE

Packaging content

Cables includedUSB cable
Quick installation guideYes

Sustainability

Sustainability certificatesENERGY STAR

Weight & dimensions

Width174 mm
Depth719 mm
Height432 mm
Weight60 kg

Packaging data

Temperature sensorYes
Warranty cardYes
Software CDYes
Package width610 mm
Package depth960 mm
Package height370 mm
Package weight67 kg

Logistics data

Products per pallet6 pc(s)
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)13539.46

Other features

Packaging contentRemovable support feet Web/SNMP Management Card
