StarTech.com Dual-Monitor USB 3.0 Docking Station with HDMI & DVI/VGA~Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/VGA, 3x USB-A Hub, GbE, Audio, Universal Type-A Dock for Windows/macOS/ChromeOS - TAA Compliant

£72.65 £60.54
In Stock (178 available)
SKU
USB3SDOCKHDV

Key Features

  • 3x USB-A Hub
  • GbE
  • Audio
  • Universal Type-A Dock for Windows/macOS/ChromeOS - TAA Compliant
  • Wired
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio

This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.

Display Adaptability

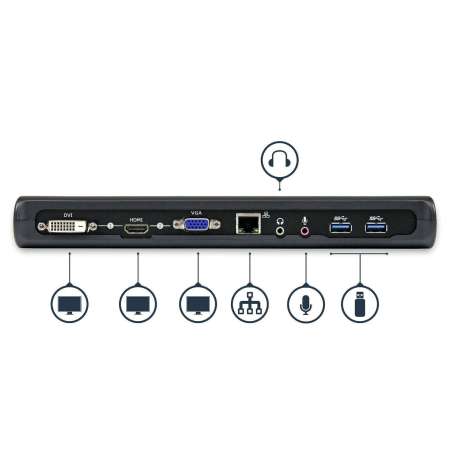

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.

Available display combinations:

• HDMI + VGA
• HDMI + DVI

Integrated USB Hub

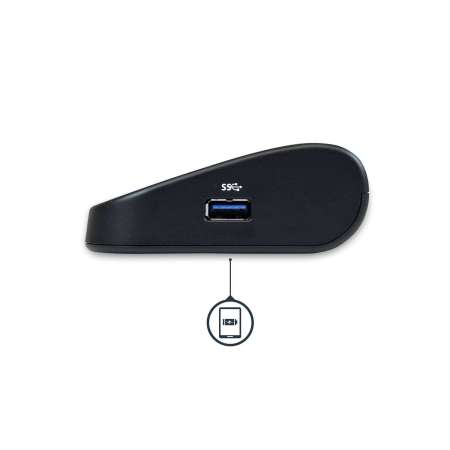

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.

The StarTech.com Advantage

StarTech.com Dual-Monitor USB 3.0 Docking Station with HDMI & DVI/VGA~Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/VGA, 3x USB-A Hub, GbE, Audio, Universal Type-A Dock for Windows/macOS/ChromeOS - TAA Compliant

Brand: StarTech.com

Ports & interfaces

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
VGA (D-Sub) ports quantity1
DVI-D ports quantity1
Microphone inYes
Headphone outputs1
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum digital resolution1920 x 1200 pixels
Maximum analog resolution2048 x 1152 pixels
Cable lock slotYes
Cable lock slot typeKensington
Product colourBlack
Housing materialPlastic
CertificationFCC, CE, TAA, REACH

Power

AC input voltage100-240 V
Input current0.9 A
Output voltage5 V
Output current4 A
Power consumption (typical)20 W
Power plug typeType B
Compatible power plug typesAU, EU, UK, US

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 90%

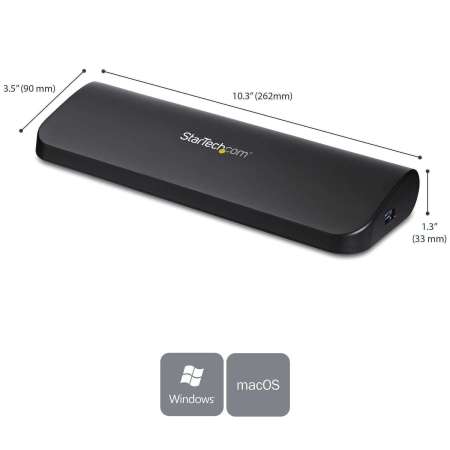

Weight & dimensions

Width178 mm
Depth304 mm
Height44 mm
Weight295 g

Packaging data

Package width195 mm
Package depth296 mm
Package height66 mm
Package weight878 g

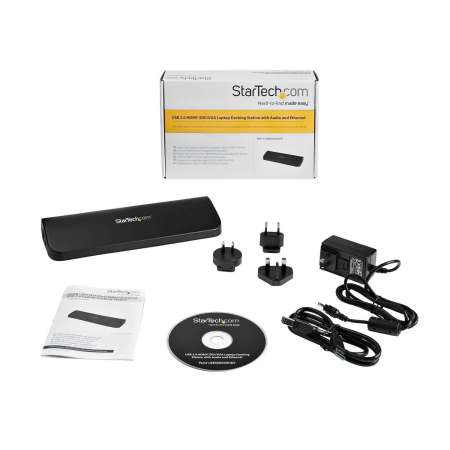

Packaging content

Cables includedUSB
AC adapter includedYes
ManualYes
Drivers includedYes

Technical details

Compliance certificatesRoHS

Logistics data

Products per master (outer) case6 pc(s)
Master (outer) case width215 mm
Master (outer) case length435 mm
Master (outer) case height345 mm
Harmonized System (HS) code84733020

Other features

ChipsetDisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E
USB data transfer rates12,480,5000 Mbit/s
