Dell PowerEdge R760xs Rack Server - Options Available
Key Features
- Up to 1.5TB DDR5 memory across 16 DIMM slots with speeds up to 5200 MT/s
- Flexible storage capacity with up to 16 front drive bays plus optional rear bays for massive storage density
- PERC H965i RAID controller with tri-mode support for SAS/SATA/NVMe configurations
- PCIe Gen 5 expansion for high-speed storage networking and accelerators
- 2U rack design balancing performance and storage capacity in air-cooled chassis
- Ideal for software-defined storage virtual desktop infrastructure and virtualization workloads
- Support for dual 5th Gen Intel Xeon Scalable processors with up to 128 cores total
- Massive NVMe storage capacity - up to 24 x 2.5" NVMe drives
- High-performance storage throughput with multiple RAID controllers
- 2U form factor optimized for storage density
- Perfect for software-defined storage and big data workloads

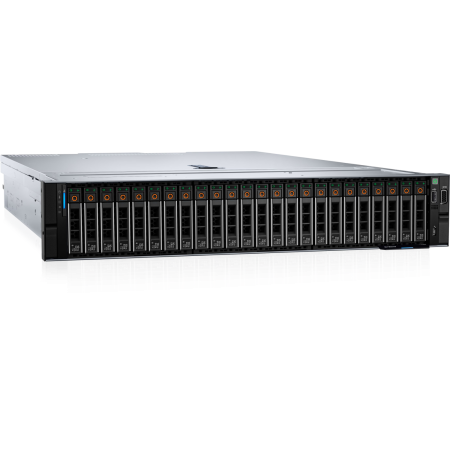

Dell PowerEdge R760xs - Extreme Storage Density Server
The Dell PowerEdge R760xs delivers exceptional storage capacity and performance in a 2U form factor. Supporting up to 24 x 2.5" NVMe drives, the R760xs provides massive local storage for media workflows, backup repositories, software-defined storage, and data analytics platforms requiring high-capacity, high-performance local storage.
Storage Capabilities
- Up to 24 x 2.5" NVMe drives for extreme storage performance
- Support for SAS/SATA configurations up to 368TB raw capacity
- Multiple PERC 12 RAID controllers with NVMe support
- BOSS-N1 Boot Optimized Storage with dual M.2 NVMe
- Hot-plug drive bays for online maintenance
- PCIe Gen 5 expansion slots
Build-to-Order Configurations
All-Flash Storage Array
- Processors Dual Xeon Gold 6542Y (24-core each)
- Memory 256GB DDR5 5600MHz
- Storage 24 x 7.68TB NVMe SSD
- Capacity 184TB raw storage
- RAID PERC H965i NVMe + H755
- Network Dual 100GbE OCP 3.0
- Management iDRAC9 Enterprise
Software-Defined Storage Node
- Processors Dual Xeon Gold 6548N (32-core each)
- Memory 512GB DDR5 5600MHz
- Storage 24 x 15.36TB NVMe SSD
- Capacity 368TB raw (Ceph/vSAN)
- RAID HBA mode (software RAID)
- Network Dual 100GbE + 25GbE
- Management iDRAC9 Enterprise
Media & Entertainment Server
- Processors Dual Xeon Silver 4510 (12-core each)
- Memory 128GB DDR5 4800MHz
- Storage 24 x 3.84TB NVMe SSD
- Capacity 92TB for 8K video editing
- Network Dual 25GbE networking
- Management iDRAC9 Enterprise
Management & Security
Every PowerEdge R760xs includes iDRAC9 with comprehensive storage monitoring, enabling real-time tracking of drive health, SMART attributes, and predictive failure analysis. Hot-plug drive bays support online drive replacement without system downtime.
Ideal Workloads
- Media and entertainment storage (video editing, rendering farms)
- Large-scale backup and archive repositories
- Software-defined storage (Ceph, Gluster, vSAN)
- Object storage nodes (MinIO, OpenStack Swift)
- Database servers requiring massive local storage
- Big data analytics platforms (Hadoop, Cassandra)
- Video surveillance recording and retention
- Scientific data collection and analysis
Custom Build-to-Order Configuration
Each PowerEdge R760xs is professionally built and tested for storage workloads. Our technical team will configure your system with your choice of Intel Xeon processors, memory capacity, drive types (HDD/SSD/NVMe), RAID configuration, and networking options at no additional charge.
Optional Services (Additional Fees Apply):
- Windows Server Installation: Microsoft Windows Server can be pre-installed (licensing and installation fees apply)
- Dell ProSupport Warranty: Extended warranty packages available
Expert Configuration: Contact our enterprise server team at 020 3488 4346 or admin@mainnet.uk to discuss your requirements.
*Example configurations. Contact 020 3488 4346 or admin@mainnet.uk to confirm availability and build your custom spec.*
