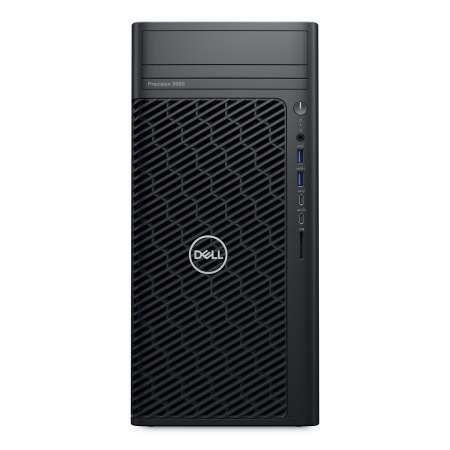

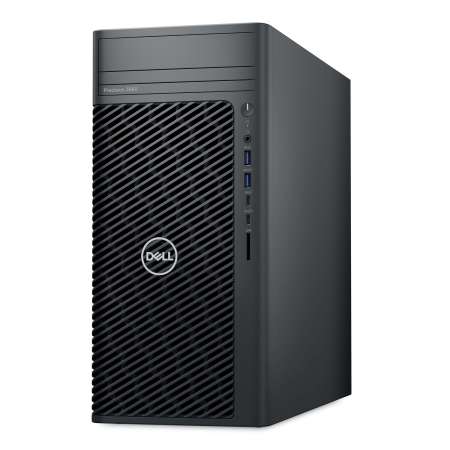

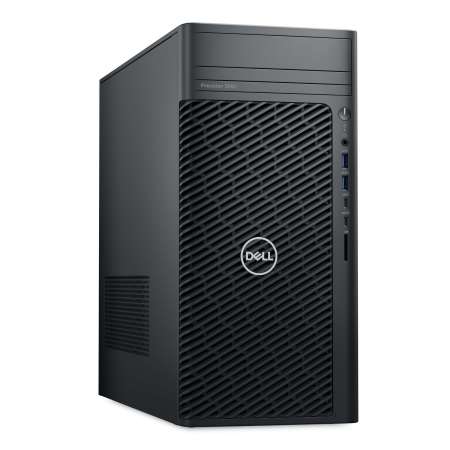

DELL Precision 3680 Intel® Core™ i7 i7-14700 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Windows 11 Pro Tower Workstation Black
DELL Precision 3680 Intel® Core™ i7 i7-14700 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Windows 11 Pro Tower Workstation Black
DELL Precision 3680 Intel® Core™ i7 i7-14700 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Windows 11 Pro Tower Workstation Black
More Information
| Processor |
Intel Core i7 |
Processor
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
Memory
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x DIMM |
| Non-ECC | Yes |
| Memory data transfer rate | 4400 MT/s |
Storage
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
Graphics
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Network
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel® I219-LM |
| Wi-Fi | No |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 2 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Combo headphone/mic port | Yes |
| Number of rear USB ports | 6 |
| Number of front USB ports | 4 |
Design
| Chassis type | Tower |
| Placement supported | Vertical |
| Water cooling system | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Viewing window | No |
| Intel® vPro™ Platform Eligibility | Yes |
Performance
| Market positioning | Business |
| Motherboard chipset | Intel W680 |
| Audio chip | Realtek ALC3246-CG |
| Audio system | High Definition Audio |
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Product type | Workstation |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Operating system architecture | 64-bit |
| Operating system language | German, Dutch, English, French, Italian |
| Operating system installed | Windows 11 Pro |
Power
| Power supply | 500 W |
| Power supply input voltage | 90 - 264 V |
| Power supply input frequency | 47/63 Hz |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.52 G |
| Non-operating vibration | 2 G |
| Operating shock | 40 G |
| Non-operating shock | 105 G |
Weight & dimensions
| Width | 173 mm |
| Depth | 420.2 mm |
| Height | 372.9 mm |
Packaging content
| Mouse included on selected markets | Dell Optical Mouse-MS116 - Black |
| Keyboard included on selected markets | Dell Multimedia Keyboard-KB216 - UK (QWERTY) - Black |
| Cables included | AC |
Carbon footprint
| Total carbon footprint (kg of CO2e) | 406 |
| Carbon emissions, manufacturing (kg of CO2e) | 180.264 |
| Carbon emissions, logistics (kg of CO2e) | 17.864 |
| Carbon emissions, energy usage (kg of CO2e) | 193.256 |
| Carbon emissions, end-of-life (kg of CO2e) | 15.022 |
| PAIA version | GaBi version 1, 2024 |
