Samsung QB24R-B Digital signage flat panel 61 cm (24") LCD Wi-Fi 250 cd/m² Full HD Black Built-in processor Tizen 4.0 16/7
Key Features
- Digital signage flat panel
- 61 cm (24")
- LCD
- 1920 x 1080 pixels
- Wi-Fi
- 16/7
Samsung QB24R-B. Product design: Digital signage flat panel. Display diagonal: 61 cm (24"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 4.0. Product colour: Black
Display
| Panel type | ADS |
| Display diagonal | 61 cm (24") |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 250 cd/m² |
| HD type | Full HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Horizontal scan range | 48 - 75 kHz |
| Vertical scan range | 56 - 84.5 Hz |
| Haze rate | 25% |
| Pixel frequency (max) | 594 MHz |
| Colour gamut | 72% |

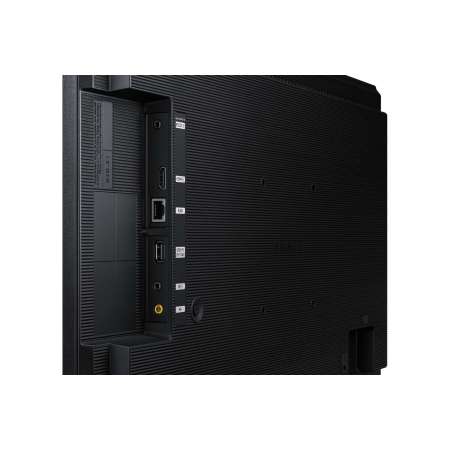

Ports & interfaces
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| HDMI input ports quantity | 1 |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| RS-232 interface | Yes |
| Infrared data port | Yes |
| Remote (IR) input | 1 |
Design
| Product design | Digital signage flat panel |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Bezel width (bottom) | 1.79 cm |
| Bezel width (side) | 9.4 mm |
| Bezel width (top) | 1.79 cm |
| Bezel colour | Black |
Performance
| Purpose | Universal |
| Operating hours (hours/days) | 16/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
Power
| Power consumption (typical) | 38.5 W |
| Power consumption (sleep) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Computer system
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Operating system installed | Tizen 4.0 |
Weight & dimensions
| Display width | 547.9 mm |
| Display depth | 31.8 mm |
| Display height | 334.4 mm |
| Display weight | 3 kg |
Packaging data
| Package width | 620 mm |
| Package depth | 122 mm |
| Package height | 419 mm |
| Package weight | 4.1 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Certificates
| Certification | Class B
60950-1, 62368-1 |
Logistics data
| Harmonized System (HS) code | 85285210 |
Other features
| Flash memory | 8000 MB |
| RS-232 input ports | 1 |
| RJ-45 input ports | 1 |
