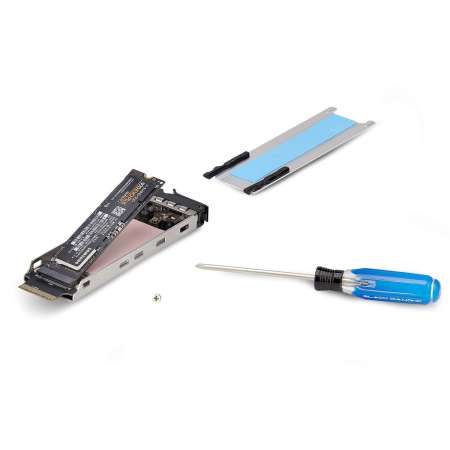

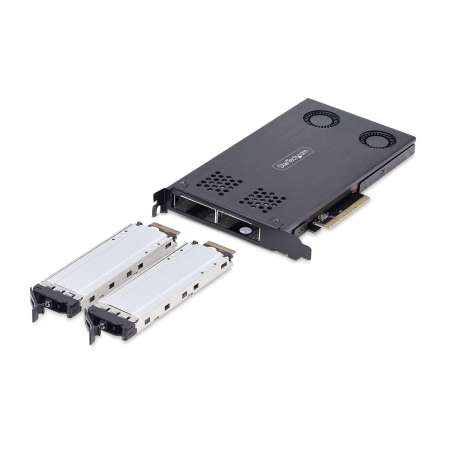

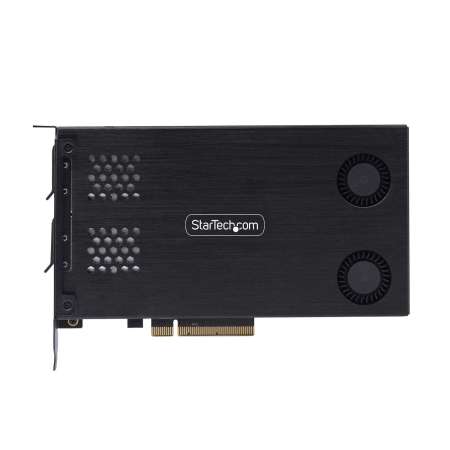

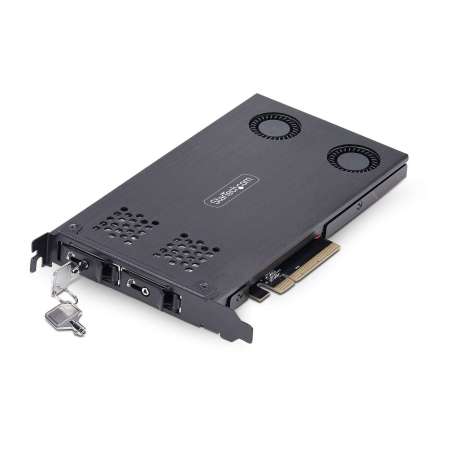

StarTech.com Dual-Bay M.2 NVMe SSD to PCIe x8 Removable Mobile Rack; Bifurcation Required; Tool-less Installation, PCIe Backplane w/Two Hot-
£153.62
£128.02
In stock
SKU
2M2-REMOVABLE-PCIE
Key Features
- PCIe Backplane w/Two Hot-
StarTech.com Dual-Bay M.2 NVMe SSD to PCIe x8 Removable Mobile Rack; Bifurcation Required; Tool-less Installation, PCIe Backplane w/Two Hot-
StarTech.com Dual-Bay M.2 NVMe SSD to PCIe x8 Removable Mobile Rack; Bifurcation Required; Tool-less Installation, PCIe Backplane w/Two Hot-Swap Drive Bays
Brand: StarTech.com
Features
| Type | Backplane |
| Product colour | Black |
| Number of SSDs supported | 2 |
| SSD interface | M.2 |
| SSD form factor | M.2 |
| Hot-swap | Yes |
| Number of fans | 2 fan(s) |
| Data transfer rate | 128 Gbit/s |
| LED indicators | Yes |
| Key lock | Yes |
| RAID support | No |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 40000 h |
Ports & interfaces
| Host interface | PCI Express |
| PCIe version | 4.0 |
Weight & dimensions
| Width | 186 mm |
| Depth | 121 mm |
| Height | 19 mm |
| Weight | 500 g |
Packaging data
| Package width | 230 mm |
| Package depth | 151 mm |
| Package height | 46 mm |
| Package weight | 500 g |
Packaging content
| Quick start guide | Yes |
| Number of lock keys included | 2 pc(s) |
| Number of screws | 2 |
Operational conditions
| Storage temperature (T-T) | 0 - 50 °C |
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 60% |
Technical details
| Compliance certificates | RoHS |
Logistics data
| Products per master (outer) case | 28 pc(s) |
| Master (outer) case width | 325 mm |
| Master (outer) case length | 485 mm |
| Master (outer) case height | 258 mm |
