StarTech.com Thunderbolt 3 Dock - Dual 4K 60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA - 85W Power Delivery & Charging - 2x USB-A, Ethernet - Mac & Windows

£82.08 £68.40
Out of stock
SKU
TB3DK2DHVUE

Key Features

  • HDMI & 1080p VGA - 85W Power Delivery & Charging - 2x USB-A
  • Ethernet - Mac & Windows
  • Wired
  • Thunderbolt 3
  • 85 W
  • 10
Laptop Dock | Mac & Windows | HDMI | DisplayPort | VGA | 85W PD

Create a powerful and flexible workstation with this Thunderbolt 3 dock. With dedicated dual video output, you can connect your Thunderbolt 3 equipped MacBook Pro or Windows laptop to two 4K monitors, through a single Thunderbolt 3 cable.

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.

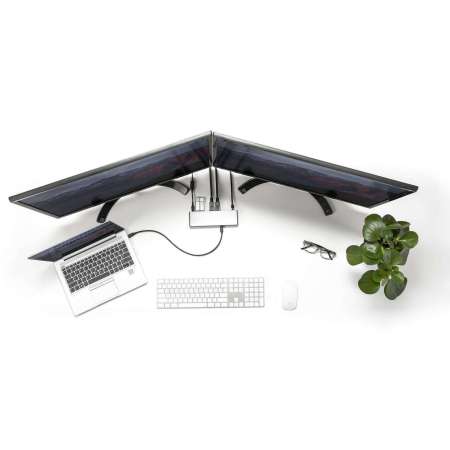

Speed & Flexibility with 3 Monitor Options

Great for editing 4K video or other Ultra HD tasks, this Thunderbolt 3 docking station supports 40Gbps speeds and 4K resolution at 60Hz on two monitors. Enjoy ultimate flexibility in setting up your workstation, with monitor options including DisplayPort (DP), HDMI and VGA.

The dock offers many dedicated dual-video options:

2x DisplayPort (4096 x 2160p @ 60Hz)

1x DisplayPort + 1 HDMI (4096 x 2160p @ 60Hz)

1x VGA (1920 x 1200p @ 60Hz) + 1x DisplayPort (4096 x 2160p @ 60Hz)

1x VGA (1920 x 1200p @ 60Hz) + 1x HDMI (4096 x 2160p @ 60Hz)

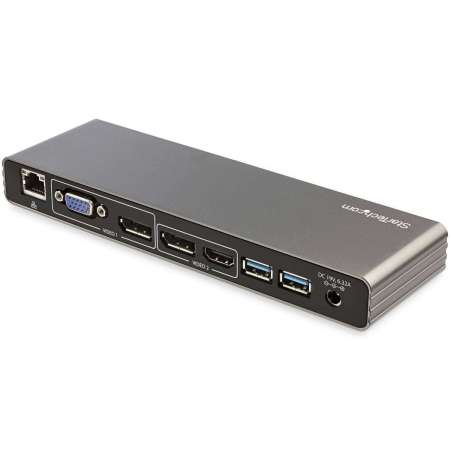

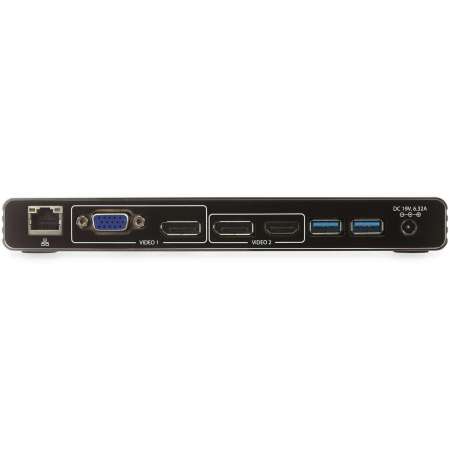

The Ports You Need Most

Harness the reliability and speed of a wired network connection with the Gigabit Ethernet port (supporting PXE Boot and Wake-on-LAN). Connect your USB devices with two USB 3.0 Type-A ports.

Power & Charge with 85W Power Delivery

Through a single 120W power adapter, the Thunderbolt 3 docking station simultaneously powers and charges your laptop and your attached peripherals while it’s docked. It provides up to 85W of charging power through Power Delivery.

The TB3DK2DHVUE is fully Thunderbolt 3 Certified and backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

StarTech.com Thunderbolt 3 Dock - Dual 4K 60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA - 85W Power Delivery & Charging - 2x USB-A, Ethernet - Mac & Windows

Brand: StarTech.com

Ports & interfaces

Connectivity technologyWired
Host interfaceThunderbolt 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB Power Delivery (USB PD)Yes
USB Power Delivery up to85 W
HDMI ports quantity1
VGA (D-Sub) ports quantity1
DisplayPorts quantity2
Microphone inNo
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes

Performance

Card reader integratedNo
HD type4K Ultra HD
Maximum digital resolution4096 x 2160 pixels
Product colourGrey
UASP supportYes
Housing materialAluminium
CertificationCE, FCC, REACH

Power

Power source typeAC
AC input voltage100 - 240 V
Input current1.8 A
Output voltage19 V
Output current6.32 A
Power consumption (typical)120 W
Power plug typeType N
Compatible power plug typesEU, UK

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supportedMac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 80%

Weight & dimensions

Width58.6 mm
Depth196 mm
Height24 mm
Weight340 g

Packaging data

Package width187 mm
Package depth254 mm
Package height65 mm
Package weight1.3 kg

Packaging content

Cables includedAC, Thunderbolt
AC adapter includedYes
ManualYes

Technical details

Compliance certificatesRoHS

Logistics data

Products per master (outer) case20 pc(s)
Master (outer) case width390 mm
Master (outer) case length676 mm
Master (outer) case height280 mm
Harmonized System (HS) code84733020

Other features

Cable length0.5 m
ChipsetIntel - Alpine Ridge JHL6540, Intel - WGI210AT, ASMedia - ASM1042A, Parade - PS176, Chrontel - CH7517
