StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - USB 3.0 to 4x USB-A, Ethernet, HDMI and DP - USB Type A Universal Laptop Docking Station for Mac & Windows
£95.18
£79.32
✓
In Stock (23 available)
SKU
USB3DOCKHDPC
Key Features
- Ethernet
- HDMI and DP - USB Type A Universal Laptop Docking Station for Mac & Windows
- Wired
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- 3.5 mm
- USB Type-A
Laptop Docking Station | Mac & Windows | USB Fast Charge Port | 4 USB Ports | TAA Compliant
This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).
4K Ultra HD Resolutions
This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).
Maximum Supported Resolutions*
Video Output Configuration
Max DisplayPort Resolution
Max HDMI Resolution
DisplayPort
(Single Display)
3840 x 2160p (4K)
N/A
HDMI
(Single Display)
N/A
2560 x 1440p
DisplayPort and HDMI
(Two Displays)
2048 x 1152p
2048 x 1152p
*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Integrated USB 3.0 Hub
The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.
USB Fast Charge
The USB 3.0 dock’s always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.
Easy to Use
This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).
4K Ultra HD Resolutions
This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).
Maximum Supported Resolutions*
Video Output Configuration
Max DisplayPort Resolution
Max HDMI Resolution
DisplayPort
(Single Display)
3840 x 2160p (4K)
N/A
HDMI
(Single Display)
N/A
2560 x 1440p
DisplayPort and HDMI
(Two Displays)
2048 x 1152p
2048 x 1152p
*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Integrated USB 3.0 Hub
The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.
USB Fast Charge
The USB 3.0 dock’s always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.
Easy to Use
This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - USB 3.0 to 4x USB-A, Ethernet, HDMI and DP - USB Type A Universal Laptop Docking Station for Mac & Windows
Brand: StarTech.com
Ports & interfaces
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| USB connector type | USB Type-A |
Network
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Performance
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 3840 x 2160 pixels |
| Cable lock slot | Yes |
| Product colour | Black |
| LED indicators | Activity, Link |
| Charging function | Yes |
| UASP support | Yes |
| Housing material | Plastic, Steel |
| Brand compatibility | Any brand |
| Certification | CE, FCC, DisplayLink |
Power
| AC input voltage | 100-240 V |
| Input current | 1.5 A |
| Output voltage | 5 V |
| Output current | 6.5 A |
| Power consumption (typical) | 32.5 W |
| Compatible power plug types | AU, EU, UK, US |
Software
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |

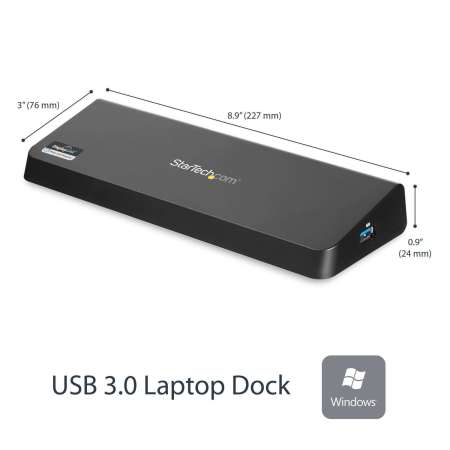

Weight & dimensions
| Width | 76 mm |
| Depth | 227 mm |
| Height | 24 mm |
| Weight | 277 g |
Packaging data
| Package width | 251 mm |
| Package depth | 198 mm |
| Package height | 71 mm |
| Package weight | 1.1 kg |
Packaging content
| Cables included | AC, USB |
| AC adapter included | Yes |
| Manual | Yes |
| Drivers included | Yes |
Technical details
| Compliance certificates | RoHS |
Logistics data
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 390 mm |
| Master (outer) case length | 426 mm |
| Master (outer) case height | 302 mm |
| Products per shipping (inner) case | 150 pc(s) |
| Harmonized System (HS) code | 84733020 |
Other features
| Cable length | 0.6 m |
| Chipset | DisplayLink - DL-5900, VLI - VL812 |
| USB data transfer rates | 5000 Mbit/s |
