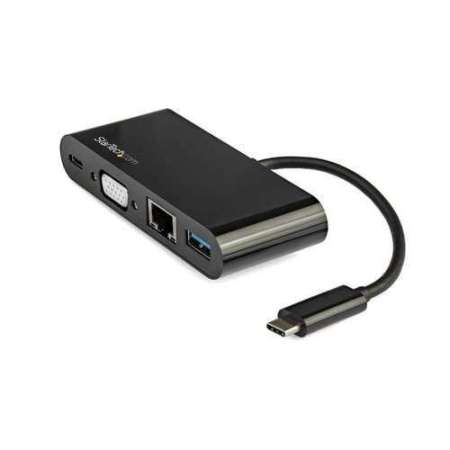

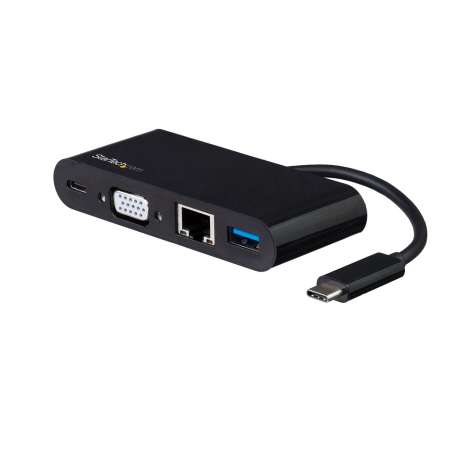

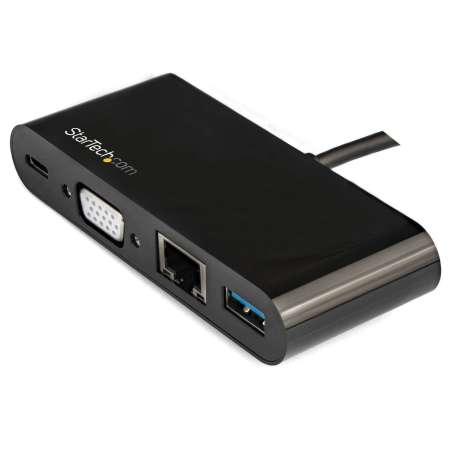

StarTech.com USB C Multiport Adapter - Mini USB-C Dock w/ Single Monitor VGA 1080p Video - 60W Power Delivery Passthrough - USB 3.1 Gen 1 Type-A 5Gbps, Gigabit Ethernet - Docking Station
£40.93
£34.11
✓
In Stock (9 available)
SKU
DKT30CVAGPD
Key Features
- Gigabit Ethernet - Docking Station
- Wired
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- 60 W
- 10
- 100
Power and charge your laptop, and create a workstation by connecting to a VGA monitor, GbE, and a USB 3.0 device
Expand the connectivity of your USB-C laptop with this USB-C VGA multiport adapter. It connects to your USB-C or Thunderbolt 3 port to add VGA video output, a USB 3.0 (Type-A) port with Fast-Charge capability plus a Gigabit Ethernet network connection. Mac, Windows and Chrome OS compatible, it’s the ideal accessory for your MacBook, laptop, tablet, Chromebook, smartphone or other USB-C device (with support for DisplayPort Alt Mode).
Connect to a VGA monitor to give presentations
This USB-C adapter lets you connect your USB-C laptop or device to an external VGA monitor or projector to give engaging presentations in the boardroom, classroom, or meeting room. It supports HD video resolutions up to 1920 x 1200p @ 60Hz.
Create a portable workstation
Compact and durable, the USB-C multiport adapter is ideal for mobile use, eliminating the need to carry multiple adapters with you. Set up a workstation with a Gigabit Ethernet port and a USB 3.0 port to connect an existing USB device, or fast-charge your smartphone or tablet. The adapter features a USB-C port that supports USB Power Delivery 2.0 (60W) so you can use your laptop’s USB-C power adapter to power both your laptop and the multiport adapter.
Fast and easy setup

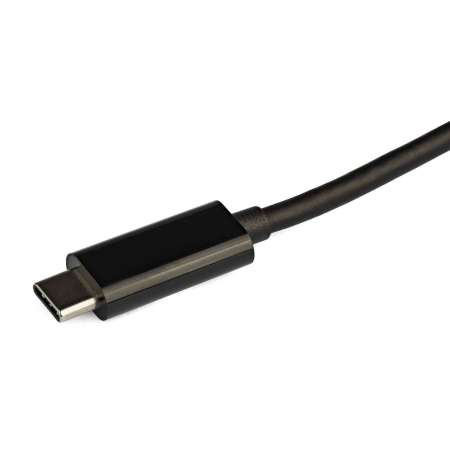

The adapter features an attached cable (5.6 in. / 143 mm) to ensure easy setup and supports plug-and-play installation, with no additional software or drivers required.
The DKT30CVAGPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Expand the connectivity of your USB-C laptop with this USB-C VGA multiport adapter. It connects to your USB-C or Thunderbolt 3 port to add VGA video output, a USB 3.0 (Type-A) port with Fast-Charge capability plus a Gigabit Ethernet network connection. Mac, Windows and Chrome OS compatible, it’s the ideal accessory for your MacBook, laptop, tablet, Chromebook, smartphone or other USB-C device (with support for DisplayPort Alt Mode).
Connect to a VGA monitor to give presentations
This USB-C adapter lets you connect your USB-C laptop or device to an external VGA monitor or projector to give engaging presentations in the boardroom, classroom, or meeting room. It supports HD video resolutions up to 1920 x 1200p @ 60Hz.
Create a portable workstation
Compact and durable, the USB-C multiport adapter is ideal for mobile use, eliminating the need to carry multiple adapters with you. Set up a workstation with a Gigabit Ethernet port and a USB 3.0 port to connect an existing USB device, or fast-charge your smartphone or tablet. The adapter features a USB-C port that supports USB Power Delivery 2.0 (60W) so you can use your laptop’s USB-C power adapter to power both your laptop and the multiport adapter.
Fast and easy setup
The adapter features an attached cable (5.6 in. / 143 mm) to ensure easy setup and supports plug-and-play installation, with no additional software or drivers required.
The DKT30CVAGPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com USB C Multiport Adapter - Mini USB-C Dock w/ Single Monitor VGA 1080p Video - 60W Power Delivery Passthrough - USB 3.1 Gen 1 Type-A 5Gbps, Gigabit Ethernet - Docking Station
Brand: StarTech.com

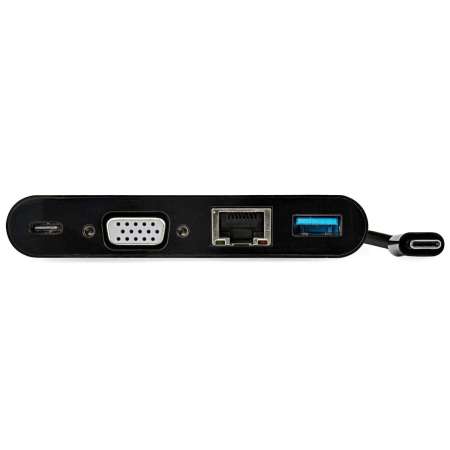

Ports & interfaces
Connectivity technology | Wired |
Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
USB Power Delivery (USB PD) | Yes |
USB Power Delivery up to | 60 W |
VGA (D-Sub) ports quantity | 1 |
Microphone in | No |
Network
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Auto MDI/MDI-X | Yes |
Full duplex | Yes |
10G support | No |
Performance
Card reader integrated | No |
Data transfer rate | 5 Gbit/s |
Maximum digital resolution | 1920 x 1200 pixels |
Product colour | Black |
UASP support | Yes |
Housing material | Plastic |
Certification | CE, FCC, REACH |
Power
Power source type | USB |
Software
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Mac compatibility | Yes |
Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Other operating systems supported | ChromeOS |
Operational conditions
Operating temperature (T-T) | 0 - 45 °C |
Storage temperature (T-T) | -10 - 80 °C |
Operating relative humidity (H-H) | 10 - 85% |
Weight & dimensions
Width | 40 mm |
Depth | 96 mm |
Height | 16 mm |
Weight | 49 g |
Packaging data
Package width | 140 mm |
Package depth | 172 mm |
Package height | 30 mm |
Package weight | 125 g |
Packaging content

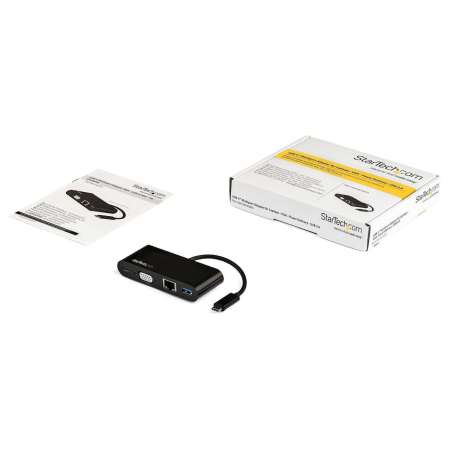

Manual | Yes |
Technical details
Compliance certificates | RoHS |
Logistics data
Products per master (outer) case | 60 pc(s) |
Master (outer) case width | 330 mm |
Master (outer) case length | 530 mm |
Master (outer) case height | 310 mm |
Harmonized System (HS) code | 84733020 |
Other features
Cable length | 0.143 m |
Chipset | VIA Labs - VL100, VIA Labs - VL813, NXP - PTN3355, Realtek - RTL8153 |
