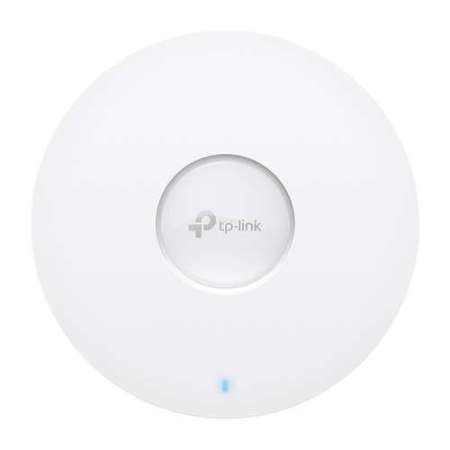

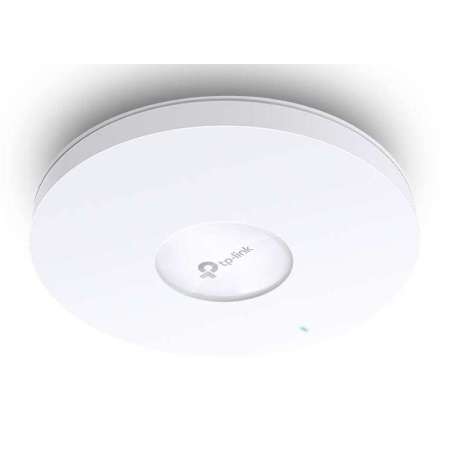

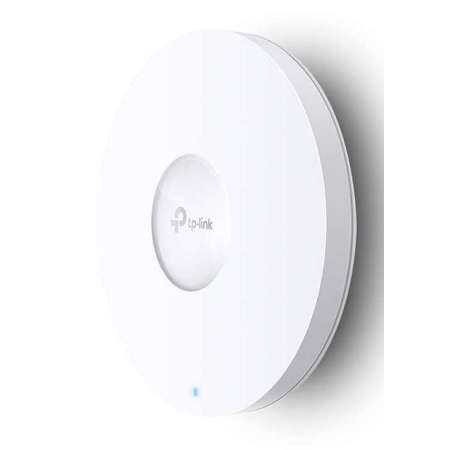

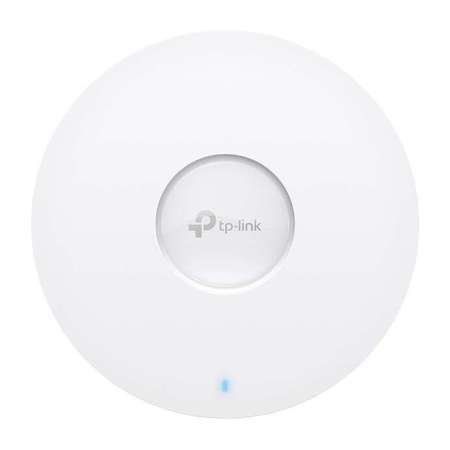

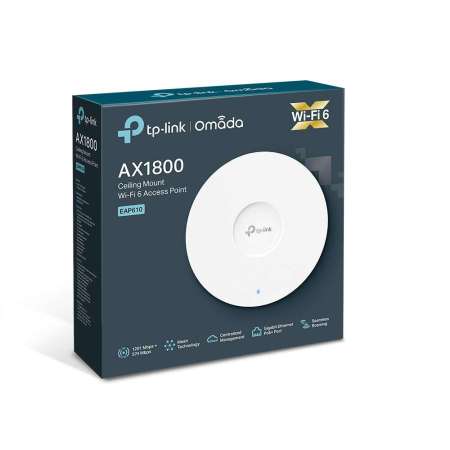

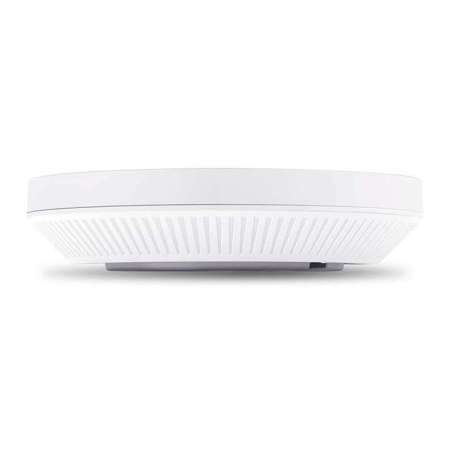

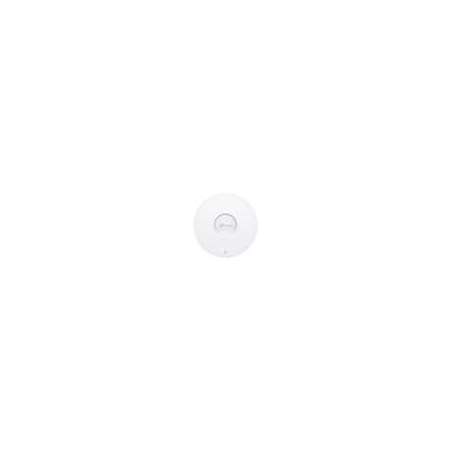

TP-Link Omada AX1800 Wireless Dual Band Ceiling Mount Access Point
TP-Link Omada AX1800 Wireless Dual Band Ceiling Mount Access Point
TP-Link Omada AX1800 Wireless Dual Band Ceiling Mount Access Point
Features 2.4 GHz Yes 5 GHz Yes 6 GHz No Maximum data transfer rate 1775 Mbit/s Maximum data transfer rate (2.4 GHz) 574 Mbit/s Maximum data transfer rate (5 GHz) 1201 Mbit/s Ethernet LAN data rates 10,100,1000 Mbit/s Frequency band 2.4 - 5 GHz Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Cabling technology 10/100/1000Base-T(X) Automatic channel selection Yes Automatic channel scanning Yes MIMO Yes MIMO type Multi User MIMO Spread spectrum method OFDMA Fit AP mode features Mesh networking VLAN support Yes Rate limiting Yes Flow control support Yes Band steering Yes Airtime Fairness (ATF) Yes Quality of Service (QoS) support Yes Transmitting power (CE) <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, EIRP) Transmitting power (FCC) <25 dBm (2.4 GHz); <25 dBm (5 GHz)
Security Security algorithms WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise MAC address filtering Yes Access Control List (ACL) Yes
Management features Web-based management Yes Syslog Yes Firmware upgradeable Yes

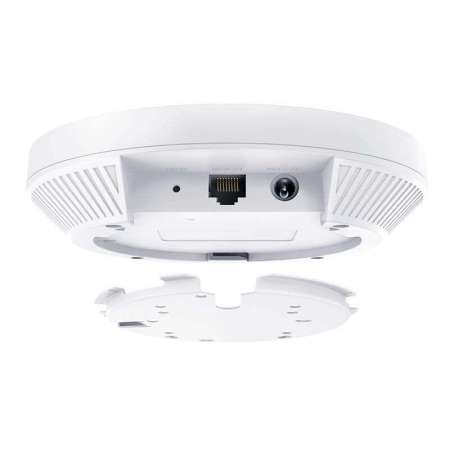

Ports & interfaces Ethernet LAN (RJ-45) ports 1 DC-in jack Yes
Power Power over Ethernet (PoE) Yes Power over Ethernet (PoE) type supported Passive PoE DC voltage range 12 V
Design Placement Ceiling, Wall Product colour White Reset button Yes LED indicators Yes
Certificates Certification CE, FCC, RoHS
Weight & dimensions Width 160 mm Depth 160 mm Height 33.6 mm
Packaging content Quantity per pack 1 pc(s) Mounting kit Yes Quick start guide Yes
Operational conditions Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 70 °C Storage relative humidity (H-H) 5 - 90%
